4-inch, 10-meter armored steel wire reinforced heavy duty rubber water hose for mining use. Our client has been placing recurring orders with Wang Xueyan, the Rubber Hose Specialist, for 6 consecutive years.
All armored steel wire rubber hose manufactured by Titan adopt multi-ply fabric layers with rigorous production techniques, delivering outstanding pressure resistance. The steel wire reinforcement uses wires 2 sizes thicker than industry average, greatly boosting the hose’s overall strength and flexibility. The inner liner is made of premium evenly mixed rubber compound with natural rubber content 8% higher than competing manufacturers, delivering superior wear and corrosion resistance. Our products are ultra-reliable with a service life extended by 20%, hard to match anywhere else in the industry.
First of all, the most distinctive feature of this batch is the armored outer layer. The armor shell mainly provides heat insulation and abrasion resistance. It can also be replaced with tire tread outer rubber to achieve the same heat and wear protection effect.
Heavy duty rubber water hose with tire tread outer rubber not only insulate heat and resist abrasion, but also gain better flexibility and lighter weight compared to armored versions. Nevertheless, mining clients generally prefer hoses with armored outer appearance.
Second, this batch of armored hoses boasts extraordinary pressure resistance. We apply 6 layers of 1260 high-tenacity thick cord fabric, combined with straight wrapping and diagonal winding craft, enabling a working pressure over 12 bar and supporting customer hydraulic pressure testing. Few suppliers can supply armored hoses with such high pressure resistance.

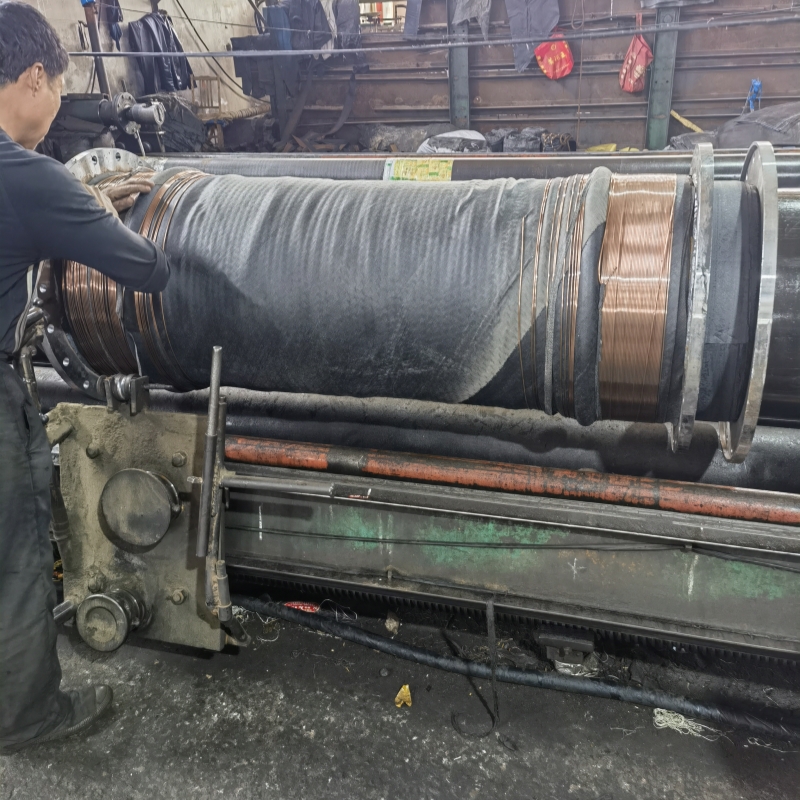

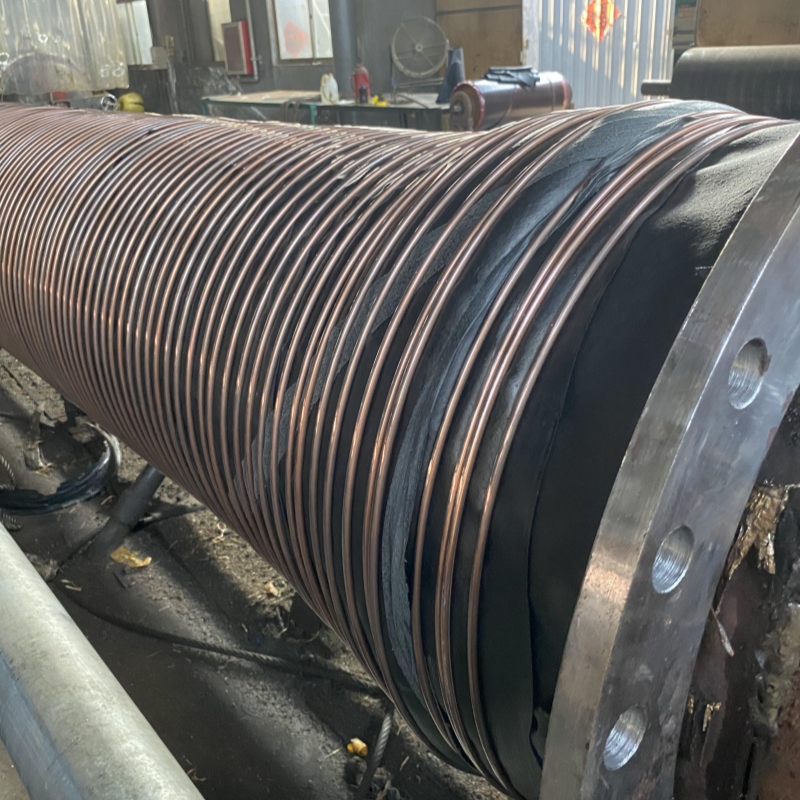

Third, the reinforcement layer uses 2.8mm steel wire, while most same-spec standard armored Heavy duty rubber water hose on the market only adopt 2.6mm steel wire — our wire is 2 sizes thicker. Thicker steel wire significantly enhances the hose’s structural strength and toughness, resulting in a much longer service life under identical mining working conditions.
Fourth, the premium inner rubber liner offers excellent wear, acid and alkali resistance, suitable for suction and delivery of muddy water, acid-base wastewater and sewage. Our natural rubber content exceeds other factories by 8%. All rubber compounds are blended via fully automatic internal mixers for consistent, uniform texture, a standard rarely matched by other hose manufacturers.
In summary, armored steel wire rubber hose supplied by Wang Xueyan feature uniform rubber compound, higher natural rubber content, superior structural strength, great flexibility, high pressure resistance, excellent bending and drag resistance, as well as strong tensile and wear performance to withstand harsh mining operations. Our quality is fully guaranteed with a 20% longer service life. Six years of repeat orders from this long-term client stand as solid recognition of our armored hoses.
Thirty well-known enterprises have maintained cooperation with us for 8 consecutive years. Source large-diameter rubber hose from Wang Xueyan: ultra-reliable quality and thoughtful service exceeding your expectations.
